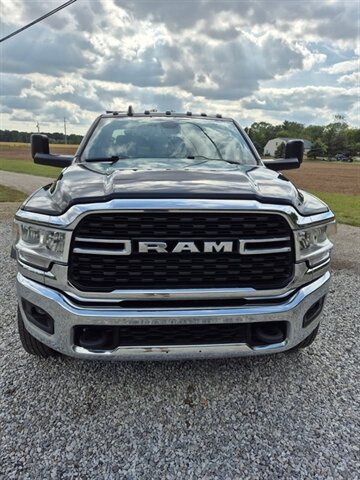

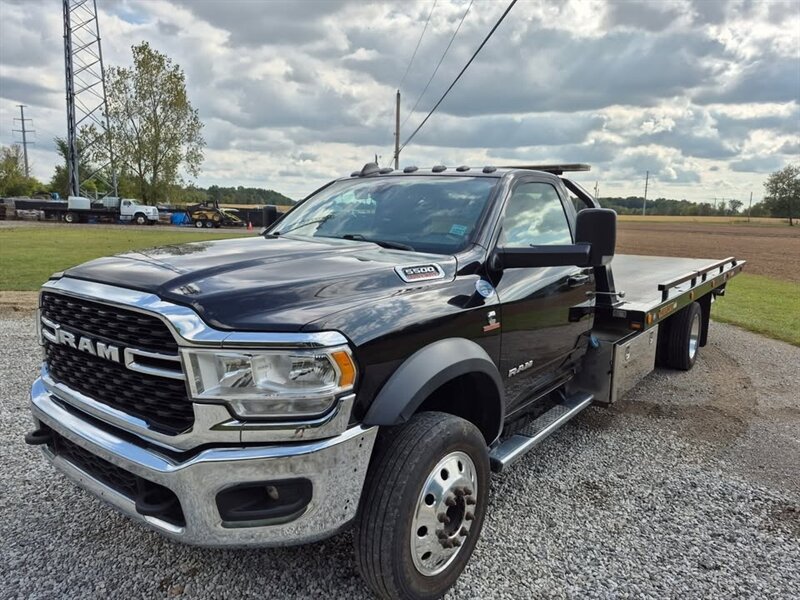

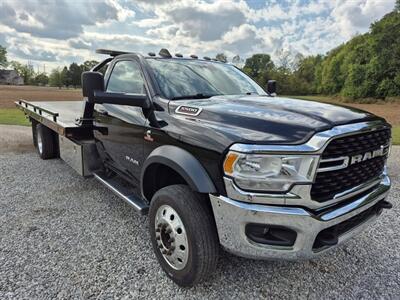

2022 RAM 5500

2022 Ram 5500
Detailed Specifications
Engine Make Cummins Engine Model ISB 6.7
Engine HP 360 Trans Make Aisin
Trans Model AS69RC HD Suspension Type Spring
Front Tire Size 225/70R19.5G FT All
Pos RR Traction
Rear Tire Size 225/70R19.5G FT All
Pos RR Traction
Axle
Configuration
Single FA Capacity 7,000
RA Capacity 13,500 Rear End Ratio 4.44
Wheelbase 205" GVWR 19,500
Front Wheels Polished Aluminum Rear Wheels Polished Aluminum
Trans Speed 6 Speed Automatic Engine Brake Yes

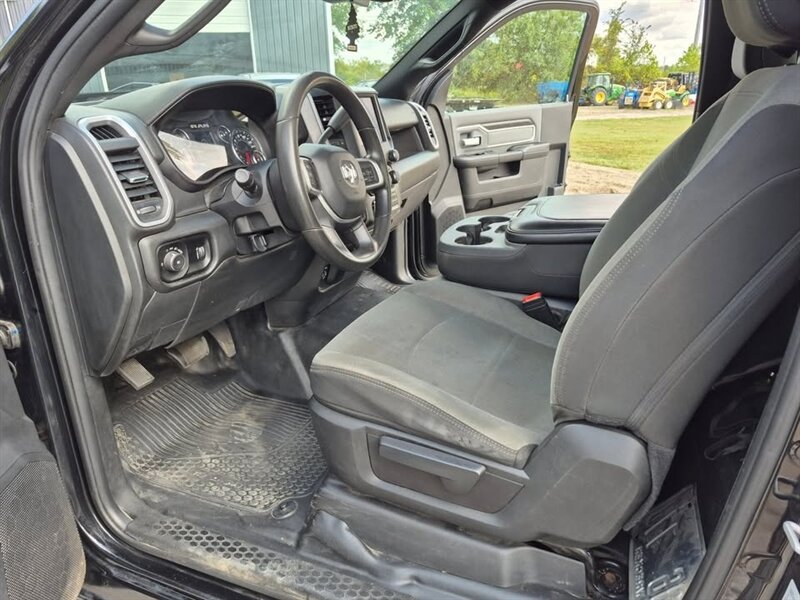

Color Black Interior Black/Diesel Gray
Fuel Type Diesel Tank #1 Capacity 22
Brakes Hydraulic CA/CT 120
Under CDL Yes
Additional Equipment
Air Conditioning Power Steering
Chrome Bumper Heated Mirrors
Aluminum Tanks Power Windows
Power Mirrors Power Door Locks
Tilt/Telescopic Wheel Cruise Control
Satellite Radio 4x2
Chrome Tubular Side Steps Front Fog Lamps
Cold Weather Group
Additional Notes
Model Carrier:
1 6-Ton Steel XLP
Standard Features:
1 •Standard LED Marker Lights (5 Pair Evenly Spaced along Outside
Rubrail)
1 •Standard Keyslots (2 Keyslots @ Front, 6 Keyslots Along Rubrail, 4
Keyslots Across Rear)
1 •Painted Subframe for 6-Ton Low Profile Carrier
Deck:

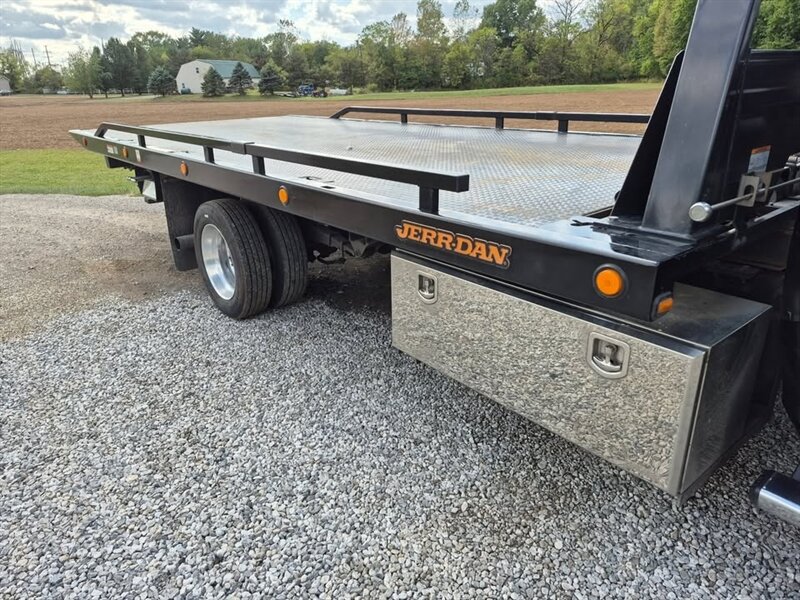

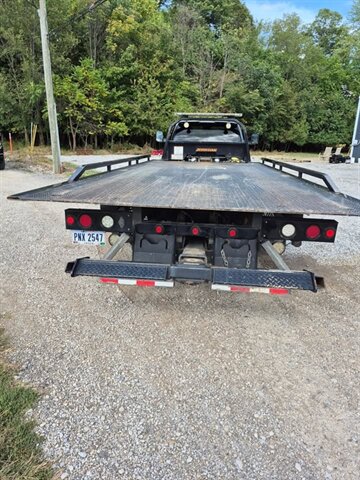

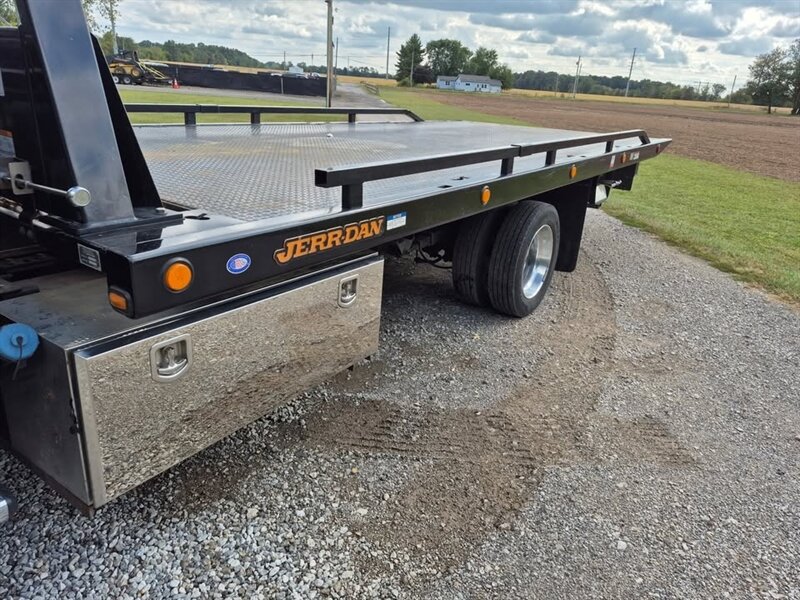

1 20’ Long x 102" Wide Steel Low Profile XLP Deck for Removable Rails
(Pick Rails Below)
Decking Material (Steel Decks Only):
1 •Diamond Plate Steel, 3/16" Thick, 1-Piece, 36 KSI1Deck
Options:
1 Removable Steel Tubular Rails 5" High
Winches:
1 8,000 lb Worm Gear Winch
Winch Options:
1 Dual Manual Free Spool for 8K/10K Winch
1 LED Work Lights Abreast of Winch (Pair)
Remote Winch
Subframe:
1 Painted Subframe for 6-Ton Low Profile Carrier
Subframe Accessories:
1 Add Greaseable Feature to any Subframe and/or Wheel Lift
Combination
Headboard:
1 37 in Fixed Height Headboard
Headboard Options:
1 LED Work Lights on Headboard (Pair)
Carrier Paint Options:
1 All Steel Components Jerr-Dan Gloss Black (Standard)
Wheel Lifts with Painted Finish:
1 Painted 3.5K IRL w/Manual L-Arms & Galvanized Grids w/Ball Hitch
Accessories for Wheel Lifts:
1 T-Handle Tighteners on any Wheel Lift
Lighting Options:
1 Whelen or Fed Signal LED Amber Light Bar
1 LED Work Lights at Rear of Subframe (Pair)
Switch Panel Options:
1 Does the Chassis have OEM
Switch Panels:
4 or 5 Function for Dodge OEM Switches
Transmission Mtd PTOs Only (Requires Hydraulic Pump Below):
1 Clutch Shift PTO for Dodge 4500/5500 Diesel Auto
Hydraulic Pump:
1 11 Gallon-Per-Minute Hydraulic Pump
Hydraulic Tank Mounting Brackets When No Toolbox is Ordered:
1 Standard Mounting Bracket Kit
